Modeling an N&W (or NS) High Hood SD40-2

Steps 005 and 005A

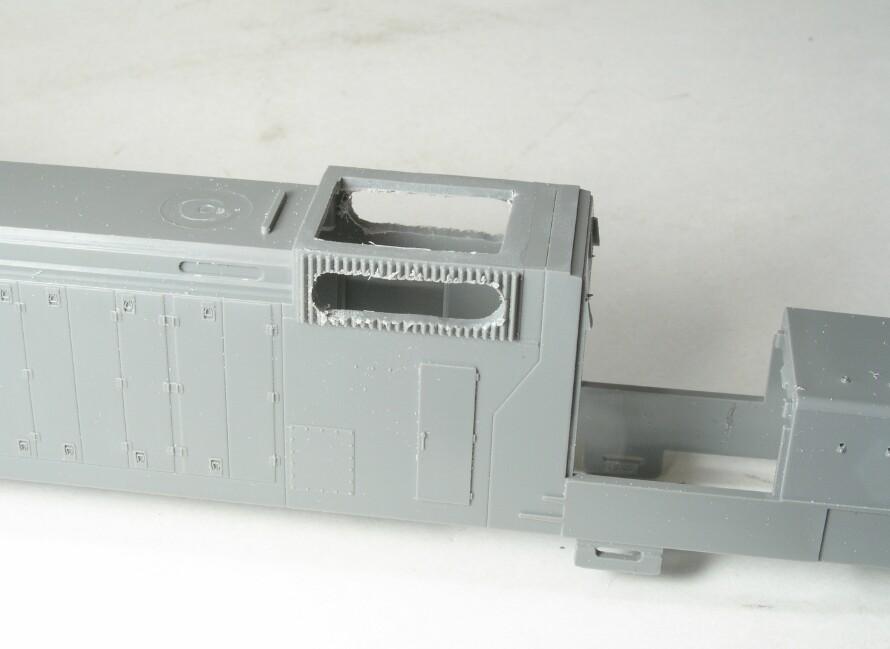

Step 005

Drill a series of #50 holes in the two inertial filter screens and then connect them. Leave approx. 1/8" on all four sides of the Kato detail.

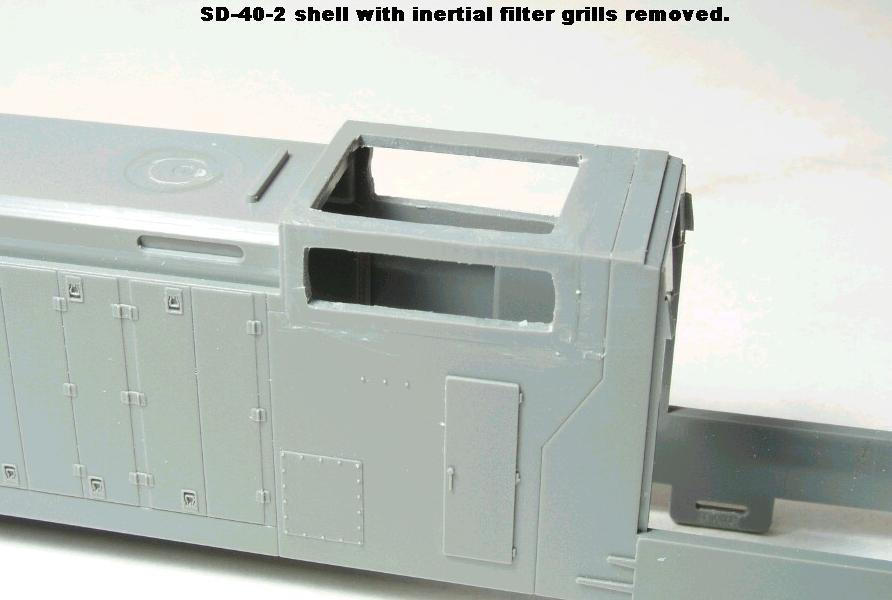

Step 005A

Carefully remove all evidence of the Kato filter screens being careful not to damage the surrounding plastic or details.
