Modeling an N&W (or NS) High Hood SD40-2

Steps 008, 008A, 008B and 008C



Step 008

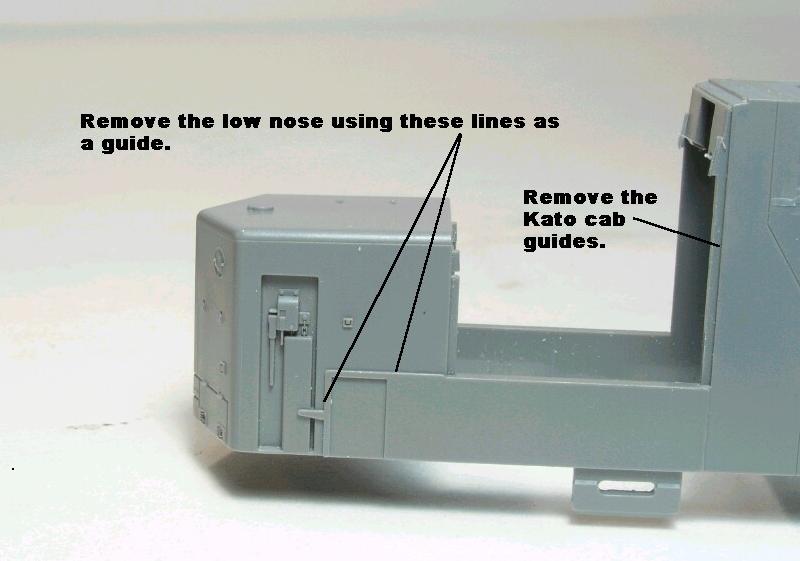

Using the lines shown as guides, carefully remove the low nose from one side of the shell.



Step 008A

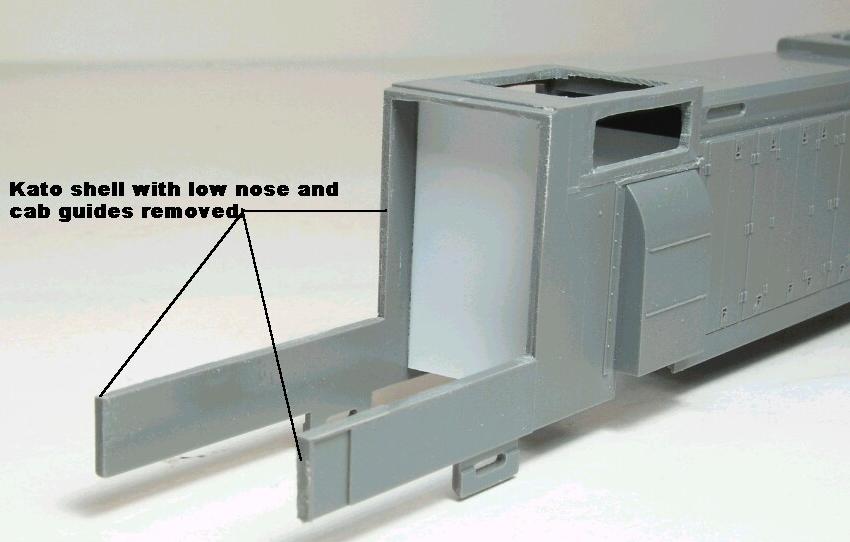

Using the lines shown, carefully remove the low nose on the other side of the shell. Next, carefully remove the Kato cab guides from the rear of the cab area and sand smooth.



Step 008B

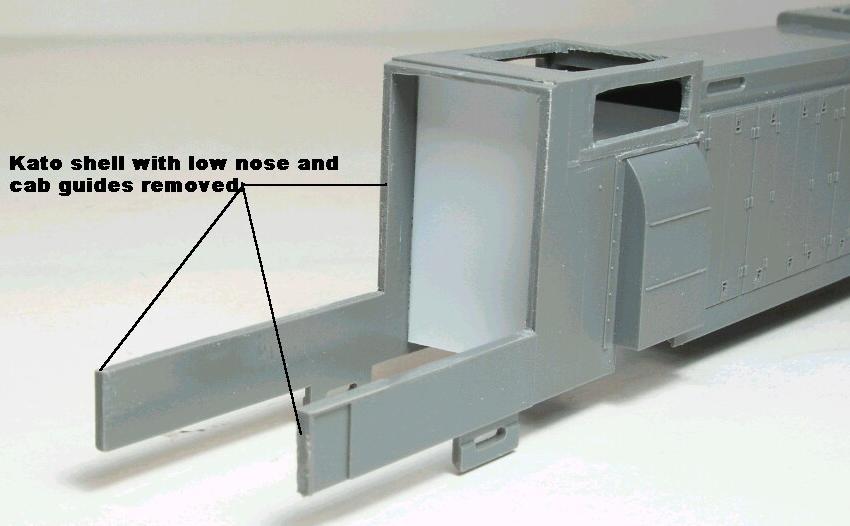

This scan shows the low nose and cab guides removed from the shell.



Step 008C

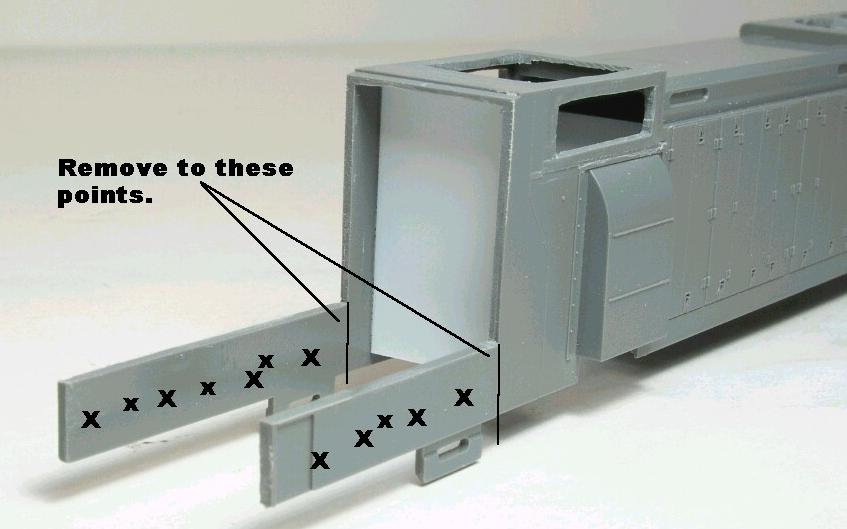

It has come to my attention that the two "fingers" shown in the scan below need to be removed since we will be using the Cannon sub base on this model.  Using the scan below, remove the two "fingers" marked with the "X" symbols at the point where they meet the shell. File smooth.
