Modeling an N&W (or NS) High Hood SD40-2

Steps 021 and 021A

Step 021

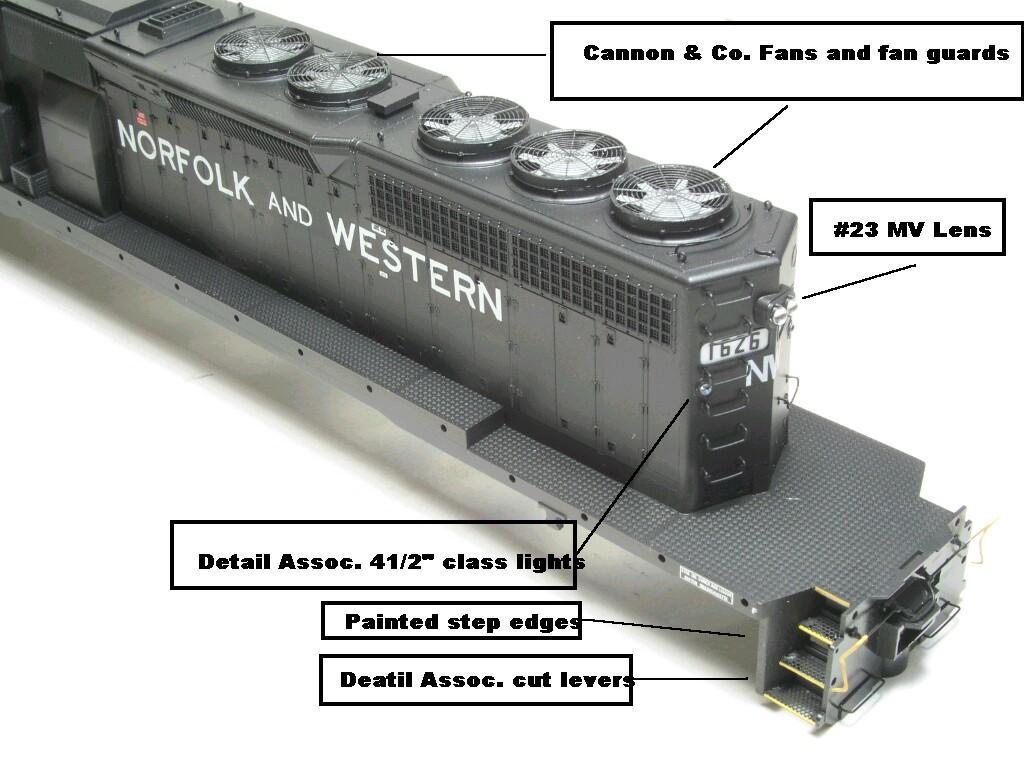

Install the Cannon fan blades and then carefully install the fan grills following the instructions found on the Cannon package.  NOTE: For those of you that are not building this unit at this time, but plan to do so in the future, I would suggest that you install and glue the fan grills into the top section of the fan guards BEFORE you install them on your model.  I've done it both ways and this way seems to be easier and is more forgiving of errors in grill placement.  Next, install the class lights, head lights and cut levers.  Next, paint the step edges and the ends of the cut levers.



Step 021A

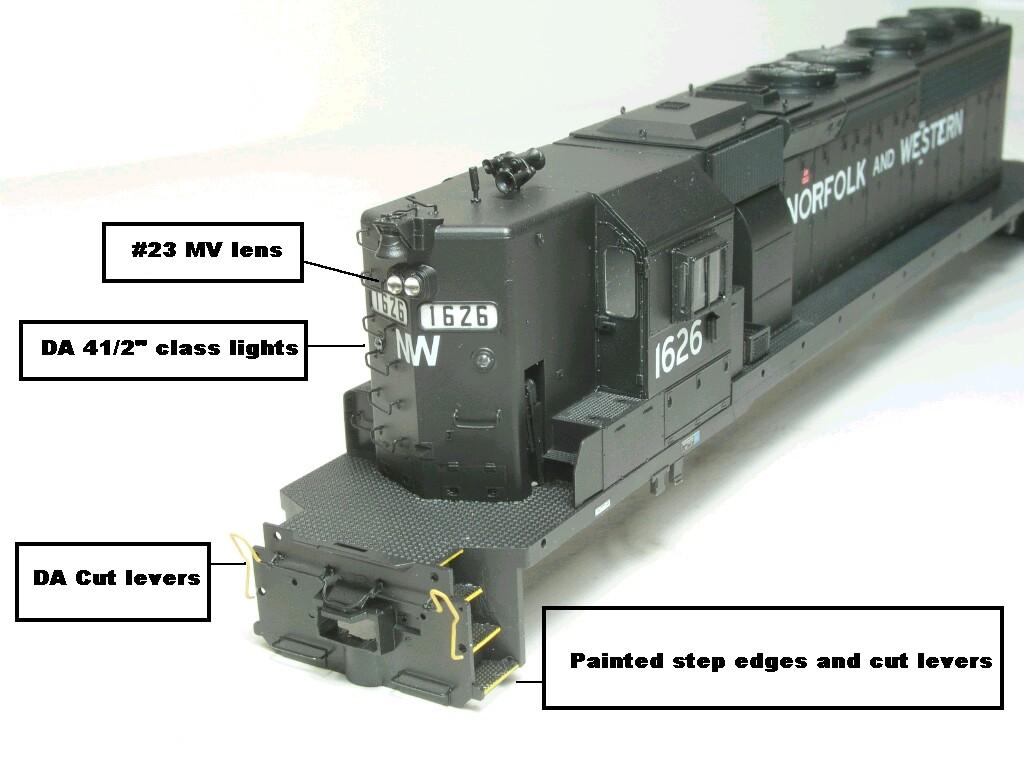

The scan below shows the same parts, class lights, head lights, cut levers and step edges from the short hood end.
