NORFOLK SOUTHERN
DIESEL LOCOMOTIVE ROSTER

EMD SD40-2 Nos. 3505-3584

80 Units Active (10 of those are currently stored)



This roster compiled and maintained by Chris R. Toth.
Roster last updated on July 11, 2019.




Active Roster


NS
No.		 4th
No.		 3rd
No.		 2nd
No.		 Original No. Build Date Order No. Builder
No.		 Low
Hood Length		 Notes
3505 HLCX 6213 DME 6387 SOO 6387 MILW 200 05-1974 73687 73687-19 See Note Below NS LEADER/PTC Equipped.
Unit currently stored, but still on the active roster.
3506 HLCX 6215 DME 6388 SOO 6388 MILW 202 05-1974 73687 73687-21 See Note Below NS LEADER/PTC Equipped.
3507   HLCX 6255 TRC  3007 CP 5710 02-1974 C374 A3155 102" Equipped with electric handbrake. NS LEADER/PTC Equipped.
Unit currently stored, but still on the active roster.
3508     HLCX 6230 UP 3365 03-1977 766056 766056-31 116"
3509   HLCX 6235 UP 3402 UP 8067 05-1977 776013 776013-3 116"
3510     BNSF 6794 BN 6798 11-1977 776053 776053-8 88" Unit has headlight mounted in low short hood.
Unit currently stored, but still on the active roster.
3511   HLCX 7006 BNSF 7006 BN 7006 12-1977 776053 776053-16 88" Unit has headlight mounted in low short hood.
3512   HLCX 7010 BNSF 7010 BN 7010 12-1977 776053 776053-20 88" Unit has headlight mounted in low short hood.
3513   HLCX 7016 BNSF 7016 BN 7016 12-1977 776053 776053-26 88" Unit has headlight mounted in low short hood.
3514   HLCX 7022 BNSF 7022 BN 7022 12-1977 776053 776053-32 88"
3515   HLCX 7027 BNSF 7027 BN 7027 12-1977 776053 776053-37 88" Unit has headlight mounted in low short hood.
3516   HLCX 7063 BNSF 7063 BN 7063 07-1978 776057 776057-1 88"

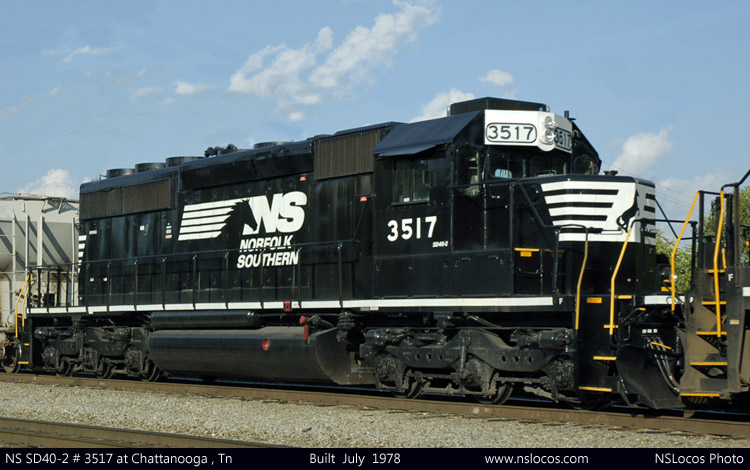

3517   HLCX 7065 BNSF 7065 BN 7065 07-1978 776057 776057-3 88" Equipped with electric handbrake. NS LEADER/PTC Equipped.
3518   HLCX 7071 BNSF 7071 BN 7071 07-1978 776057 776057-9 88"
3519 HLCX 6844 BNSF 6844 BN 6844 SLSF 954 07-1978 776109 776109-5 88" Unit has headlight mounted in low short hood.
3520 HLCX 6847 BNSF 6847 BN 6847 SLSF 957 07-1978 776109 776109-8 88" Unit has headlight mounted in low short hood.
3521   HLCX 6208 BCOL 740 KCCX 105 11-1978 776129 776129-5 88" Equipped with electric handbrake. NS LEADER/PTC Equipped.
3522   HLCX 6210 BCOL 742 KCCX 107 11-1978 776129 776129-7 88"
3523 HLCX 7857 BNSF 7857 BN 7857 CS 7857 10-1978 786001 786001-2 88" Unit has headlight mounted in low short hood.
3524 HLCX 7862 BNSF 7862 BN 7862 CS 7862 10-1978 786001 786001-7 88" Equipped with electric handbrake. NS LEADER/PTC Equipped.
Unit has headlight mounted in low short hood.
3525     HLCX 6297 BN 7086 10-1978 786166 786166-12 88"
3526     HLCX 6299 BN 7096 11-1978 786166 786166-22 88" Equipped with electric handbrake. NS LEADER/PTC Equipped.
3527 HLCX 6250 PRSX/
UP 9938		 UP 4286 MP 3286 05-1979 786178 786178-21 88" Unit currently stored, but still on the active roster.
3528     HLCX 7149 BN 7149 02-1979 786173 786173-24 88" Equipped with electric handbrake. NS LEADER/PTC Equipped.
Unit has flared radiators- former BN LNG (Liquid Natural Gas) test unit.
3529   HLCX 7163 BNSF 7163 BN 7163 04-1979 786173 786173-58 88"
3530 HLCX 7903 BNSF 7903 BN 7903 CS 7903 06-1979 786173 786173-76 88" Unit has headlight mounted in low short hood.
3531 HLCX 7916 BNSF 7916 BN 7916 CS 7916 06-1979 786173 786173-89 88" Unit has headlight mounted in low short hood.
3532 HLCX 7920 BNSF 7920 BN 7920 CS 7920 06-1979 786173 786173-93 See Note Below Equipped with electric handbrake. NS LEADER/PTC Equipped.
3533 HLCX 7921 BNSF 7921 BN 7921 CS 7921 06-1979 786173 786173-94 88" Equipped with electric handbrake. NS LEADER/PTC Equipped.
3534 HLCX 7922 BNSF 7922 BN 7922 CS 7922 07-1979 786173 786173-95 88"
3535   HLCX 6232 UP 3942 MP 6042 06-1979 786181 786181-23 88"
3536     BNSF 8056 BN 8056 11-1979 786216 786216-26 88"
3537     BNSF 8071 BN 8071 12-1979 786216 786216-41 88"
3538   HLCX 6256 UP 3604 UP 8095 08-1979 786218 786218-31 88"
3539     HLCX 7168 BN 7168 09-1979 C422 A3770 88"
3540     HLCX 7169 BN 7169 09-1979 C422 A3771 88" Equipped with electric handbrake. NS LEADER/PTC Equipped.
Unit currently stored, but still on the active roster.
3541   HLCX 7171 BNSF 7171 BN 7171 09-1979 C422 A3773 88" Unit has headlight mounted in low short hood.
3542     HLCX 7176 BN 7176 09-1979 C422 A3778 88"
3543     HLCX 7177 BN 7177 09-1979 C422 A3779 88" Equipped with electric handbrake. NS LEADER/PTC Equipped.
Unit currently stored, but still on the active roster.
3544     HLCX 7178 BN 7178 09-1979 C422 A3780 88"
3545     HLCX 7179 BN 7179 09-1979 C422 A3781 88" Equipped with electric handbrake. NS LEADER/PTC Equipped.
3546     HLCX 7183 BN 7183 09-1979 C422 A3785 88"
3547     HLCX 7186 BN 7186 09-1979 C422 A3788 88"
3548     HLCX 7188 BN 7188 09-1979 C422 A3790 88"
3549     HLCX 7191 BN 7191 09-1979 C422 A3793 88"
3550     HLCX 7194 BN 7194 09-1979 C422 A3796 88"
3551     HLCX 7197 BN 7197 09-1979 C422 A3799 88"
3552     HLCX 7199 BN 7199 09-1979 C422 A3801 88" Equipped with electric handbrake. NS LEADER/PTC Equipped.
3553     HLCX 7200 BN 7200 10-1979 C422 A3802 88" Unit has headlight mounted in low short hood.
3554     HLCX 7202 BN 7202 10-1979 C422 A3804 88"
3555   HLCX 8081 BNSF 8081 BN 8081 08-1979 C422 A3760 88" Equipped with electric handbrake. NS LEADER/PTC Equipped.
3556   HLCX 8085 BNSF 8085 BN 8085 08-1979 C422 A3764 88" Unit has headlight mounted in low short hood.
3557     BNSF 8087 BN 8087 08-1979 C422 A3766 88" Unit has headlight mounted in low short hood.
3558     HLCX 8138 BN 8138 07-1980 786256 786256-49 88"
3559     HLCX 8139 BN 8139 07-1980 786256 786256-50 88" Equipped with electric handbrake. NS LEADER/PTC Equipped.
3560     HLCX 8141 BN 8141 07-1980 786256 786256-52 88"
3561   HLCX 8142 BNSF 8142 BN 8142 07-1980 786256 786256-53 88"
3562     HLCX 8149 BN 8149 07-1980 786256 786256-60 88"
3563     HLCX 8150 BN 8150 07-1980 786256 786256-61 88"
3564     HLCX 8152 BN 8152 07-1980 786256 786256-63 88"
3565     HLCX 8153 BN 8153 07-1980 786256 786256-64 88" Unit currently stored undergoing cab replacement.
3566     HLCX 8154 BN 8154 07-1980 786256 786256-65 88"
3567     HLCX 8155 BN 8155 07-1980 786256 786256-66 88"
3568     HLCX 8156 BN 8156 07-1980 786256 786256-67 88"
3569     HLCX 8157 BN 8157 07-1980 786256 786256-68 88" Unit currently stored, but still on the active roster.
3570     HLCX 8158 BN 8158 07-1980 786256 786256-69 88" Unit currently stored undergoing cab replacement.
3571     HLCX 8162 BN 8162 07-1980 786256 786256-73 88"
3572     HLCX 8164 BN 8164 07-1980 786256 786256-75 88"
3573     HLCX 8165 BN 8165 07-1980 786256 786256-76 88"
3574   HLCX 8166 BNSF 8166 BN 8166 07-1980 786256 786256-77 88" Unit has headlight mounted in low short hood.
3575     HLCX 8168 BN 8168 07-1980 786256 786256-79 88"
3576     HLCX 8170 BN 8170 07-1980 786256 786256-81 88" Equipped with electric handbrake. NS LEADER/PTC Equipped.
3577     HLCX 8173 BN 8173 07-1980 786256 786256-84 88" Equipped with electric handbrake. NS LEADER/PTC Equipped.
3578     HLCX 8179 BN 8179 07-1980 786256 786256-90 88" Equipped with electric handbrake. NS LEADER/PTC Equipped.
3579     HLCX 8180 BN 8180 07-1980 786256 786256-91 88"
3580   HLCX 6252 UP 3834 MKT 626 07-1980 796305 796305-8 88" Equipped with electric handbrake. NS LEADER/PTC Equipped.
3581     HLCX 7228 BN 7228 07-1980 C423 A3937 88" Unit currently stored, but still on the active roster.
3582     HLCX 7230 BN 7230 07-1980 C423 A3939 88" Unit has headlight mounted in low short hood.
3583   HLCX 6234 UP 3956 MP 6056 04-1980 796311 796311-3 88" Equipped with electric handbrake. NS LEADER/PTC Equipped.
3584     HLCX 6241 UP 3801 11-1980 796345 796345-33 88" Equipped with electric handbrake. NS LEADER/PTC Equipped.


General Info

NS Model Designation = SD40-2
Horsepower = 3,000
Fuel Tank Capacity = See below
Dynamic Braking = Yes
Control = Single
Cab Signals = No
LSL (Locomotive Speed Limiter) = No

Fuel Capacity
 Units 3505-3506 = 3,000 gallons
All other units = 4,000 gallons

All units are equipped with cab air conditioning.

Units were acquired from Helm Leasing with delivery occurring between November 2013 and June 2014.

Rebuilt with NS-designed "Admiral" cab and low short hood:
3505, 3506, 3532

Equipped with the Traction and Engine Control Unit (TECU) from TMV Control Systems:
3505, 3506

Units equipped with FreezeBeater System
3532, 3555, 3564
