NORFOLK SOUTHERN
DIESEL LOCOMOTIVE ROSTER

EMD/NS GP59E Nos. 4650-4661

1 Unit Active

Note: These units are being renumbered into the 6650-6661 series.


This roster compiled and maintained by Chris R. Toth.
Roster last updated on August 27, 2023.




Active Roster

Note: Any unit in this series below with a line through it has already been
renumbered into the 6650-6661 series.



Road No.

Rebuilt From Rebuild Date Rebuilt By Original Build Date Order No. Builder No. Notes

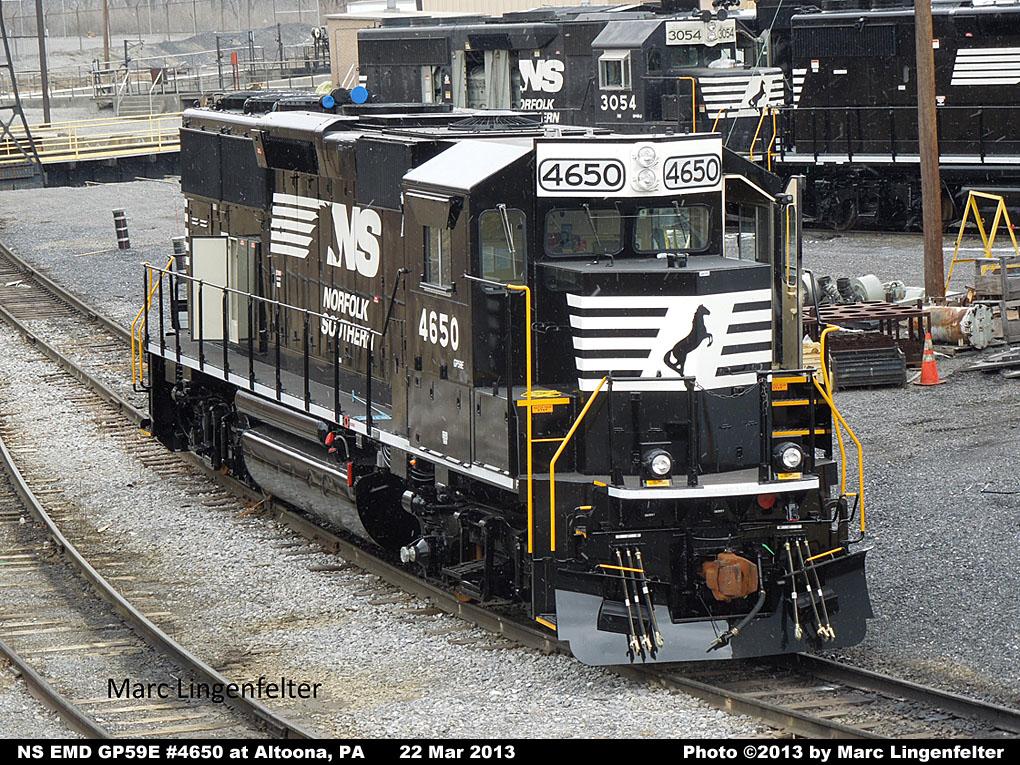

4650 NS EMD GP59 4607/EMD 9 06-2013 NS 06-1985 836062 836062-2 Originally an EMD GP59 demonstrator unit.
Unit currently stored, but still on the active roster.
4651 NS EMD GP59 4606/EMD 8 08-2013 NS 06-1985 836062 836062-1 Originally an EMD GP59 demonstrator unit.
Unit currently stored, but still on the active roster.
4652 NS EMD GP59 4636:2/NS 4622 08-2013 NS 12-1989 887007 887007-14 Unit wrecked as NS 4622, then renumbered while in storage as NS 4636:2 prior to being rebuilt as a GP59E.
Unit currently stored, but still on the active roster.
4653 NS EMD GP59 4608/EMD 10 01-2014 NS 06-1985 836062 836062-3 Originally an EMD GP59 demonstrator unit.
Painted in special Operation Lifesaver paint scheme.
4654 NS EMD GP59 4631 03-2014 NS 12-1989 887007 887007-23 Painted in special Operation Lifesaver paint scheme.

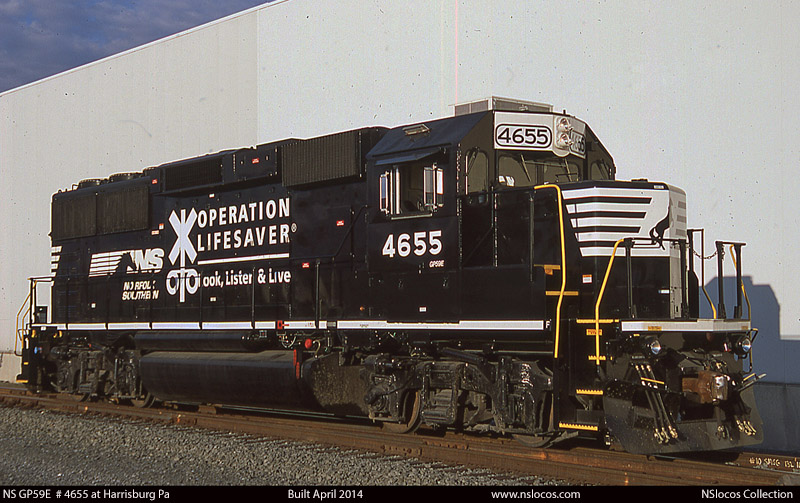

4655 NS EMD GP59 4637 04-2014 NS 12-1989 887007 887007-29 NS LEADER/PTC Equipped.
Painted in special Operation Lifesaver paint scheme.
4656 NS EMD GP59 4620 04-2014 NS 11-1989 887007 887007-12 Painted in special Operation Lifesaver paint scheme.
4657 NS EMD GP59 4626 06-2014 NS 12-1989 887007 887007-18 Painted in special Operation Lifesaver paint scheme.
Unit currently stored, but still on the active roster.
4658 NS EMD GP59 4640 06-2014 NS 12-1989 887007 887007-32 Painted in special Operation Lifesaver paint scheme.
4659 NS EMD GP59 4638 08-2014 NS 12-1989 887007 887007-30 Painted in special Operation Lifesaver paint scheme.
4660 NS EMD GP59 4615 09-2014 NS 11-1989 887007 887007-7 Painted in special Operation Lifesaver paint scheme.
4661 NS EMD GP59 4632 10-2014 NS 12-1989 887007 887007-24 Painted in special Operation Lifesaver paint scheme.


General Info

NS Model Designation = GP59E
Horsepower = 3,000
Weight = 272,000 lbs.
Fuel Tank Capacity = See below
Dynamic Braking = Yes
Control = Single
Cab Signals = Yes
LSL (Locomotive Speed Limiter) = Yes
Air Conditioning = Yes

Fuel capacity
Units 4650, 4651, 4653 = 3,100 gallons
All other units = 3,500 gallons

Powered by an EMD 12-cylinder 12N-710G3B-EC engine.

Equipped with EMD EM2000 microprocessor control system.

Equipped with EMD EMDEC Electronic Unit Injection (EUI) system.

Equipped with NS-designed split cooling system.

Units meet EPA Tier 3 emissions standards.
Units meet EPA Tier 3 emissions standards.

Units meet EPA Tier 0+ emissions standards.

Equipped with CCB26 electronic air braking system.

Equipped with SmartStart auto start/stop system.

Equipped with an electric parking brake.

Equipped to operate as master for NS 610 series RP-M4C slugs.

Units rebuilt with new NS-designed "Admiral" cab and low short hood:
4650-4653
