NORFOLK SOUTHERN
DIESEL LOCOMOTIVE ROSTER

EMD SD70ACe (SD70IAC) Nos. 1175-1224

50 Units Active (2 of those are currently stored)

10 additional units on order for early 2022 (see below)


This roster compiled and maintained by Chris R. Toth
Roster last updated on: December 31, 2021.




Active Roster



Road No.

Build Date Order No. Builder No. Notes
1175 11-2018 20186662 20186662-001
1176 11-2018 20186662 20186662-002

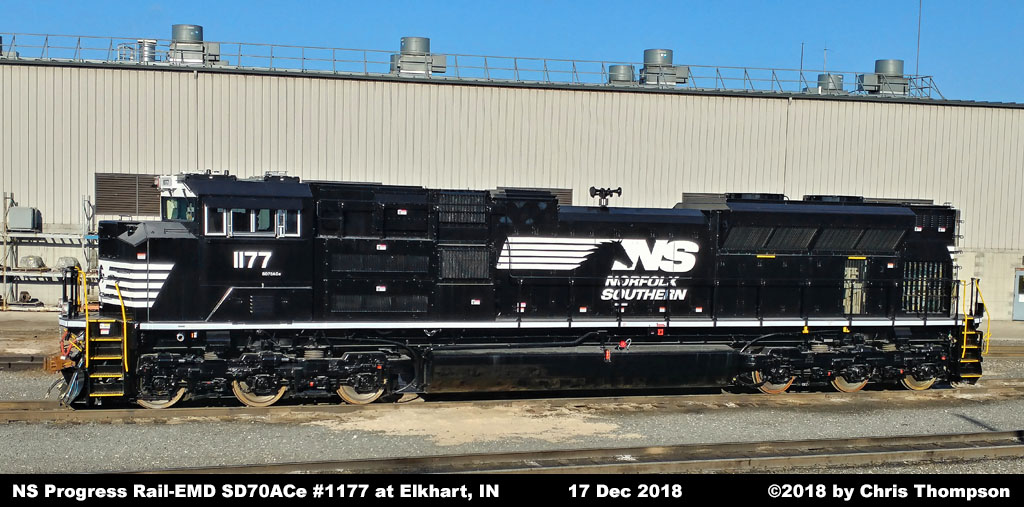

1177 11-2018 20186662 20186662-003
1178 11-2018 20186662 20186662-004
1179 11-2018 20186662 20186662-005
1180 11-2018 20186662 20186662-006
1181 11-2018 20186662 20186662-007
1182 11-2018 20186662 20186662-008
1183 11-2018 20186662 20186662-009
1184 11-2018 20186662 20186662-010
1185 11-2018 20186662 20186662-011

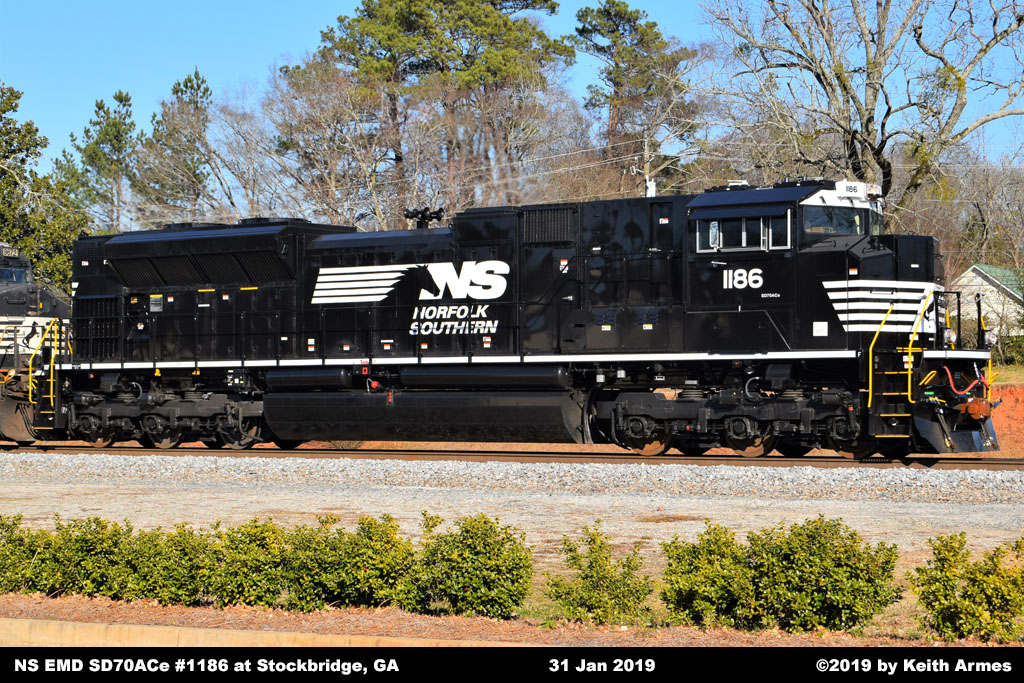

1186 11-2018 20186662 20186662-012
1187 11-2018 20186662 20186662-013
1188 11-2018 20186662 20186662-014
1189 11-2018 20186662 20186662-015
1190 01-2019 20186662 20186662-016
1191 01-2019 20186662 20186662-017
1192 01-2019 20186662 20186662-018 Unit currently stored for repairs at Mid America Car at Kansas City, MO after sustaining damage in a wreck while being used by BNSF at Houston, TX.
1193 02-2019 20186662 20186662-019
1194 02-2019 20186662 20186662-020
1195 02-2019 20186662 20186662-021
1196 02-2019 20186662 20186662-022
1197 02-2019 20186662 20186662-023
1198 02-2019 20186662 20186662-024
1199 02-2019 20186662 20186662-025
1200 02-2019 20186662 20186662-026
1201 02-2019 20186662 20186662-027

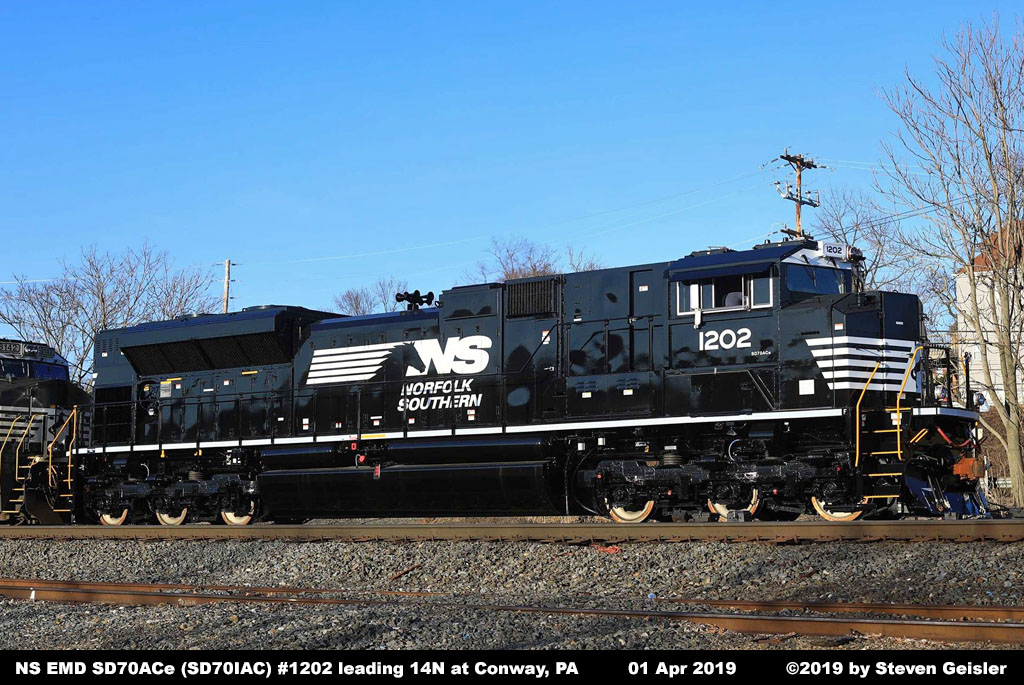

1202 02-2019 20186662 20186662-028
1203 02-2019 20186662 20186662-029
1204 03-2019 20186662 20186662-030
1205 03-2019 20186662 20186662-031
1206 03-2019 20186662 20186662-032
1207 03-2019 20186662 20186662-033
1208 03-2019 20186662 20186662-034
1209 04-2019 20186662 20186662-035
1210 04-2019 20186662 20186662-036
1211 04-2019 20186662 20186662-037
1212 04-2019 20186662 20186662-038
1213 05-2019 20186662 20186662-039 Unit currently stored, but still on the active roster.
1214 05-2019 20186662 20186662-040
1215 11-2019 20186662 20186662-041
1216 11-2019 20186662 20186662-042
1217 11-2019 20186662 20186662-043
1218 11-2019 20186662 20186662-044
1219 11-2019 20186662 20186662-045
1220 11-2019 20186662 20186662-046
1221 11-2019 20186662 20186662-047
1222 11-2019 20186662 20186662-048
1223 11-2019 20186662 20186662-049
1224 11-2019 20186662 20186662-050

Units 1225-1234 on order for early 2022

Note: Units listed below in italics with gray background have not yet been completed and released to active service.

NS
No.
First
No.
Build Date Order No. Builder No. Notes
(1225) EMDX 2115 Confirming 20186647 20186647-001 Unit being renumbered and relettered for delivery to NS by Progress Rail at Muncie, IN.
(1226) EMDX 2116 Confirming 20186647 20186647-002 Unit being renumbered and relettered for delivery to NS by Progress Rail at Muncie, IN.
(1227) EMDX 2117 Confirming 20186647 20186647-003 Unit being renumbered and relettered for delivery to NS by Progress Rail at Muncie, IN.
(1228) EMDX 2118 Confirming 20186647 20186647-004 Unit being renumbered and relettered for delivery to NS by Progress Rail at Muncie, IN.
(1229) EMDX 2119 Confirming 20186647 20186647-005 Unit being renumbered and relettered for delivery to NS by Progress Rail at Muncie, IN.
(1230) EMDX 2120 Confirming 20186647 20186647-006 Unit being renumbered and relettered for delivery to NS by Progress Rail at Muncie, IN.

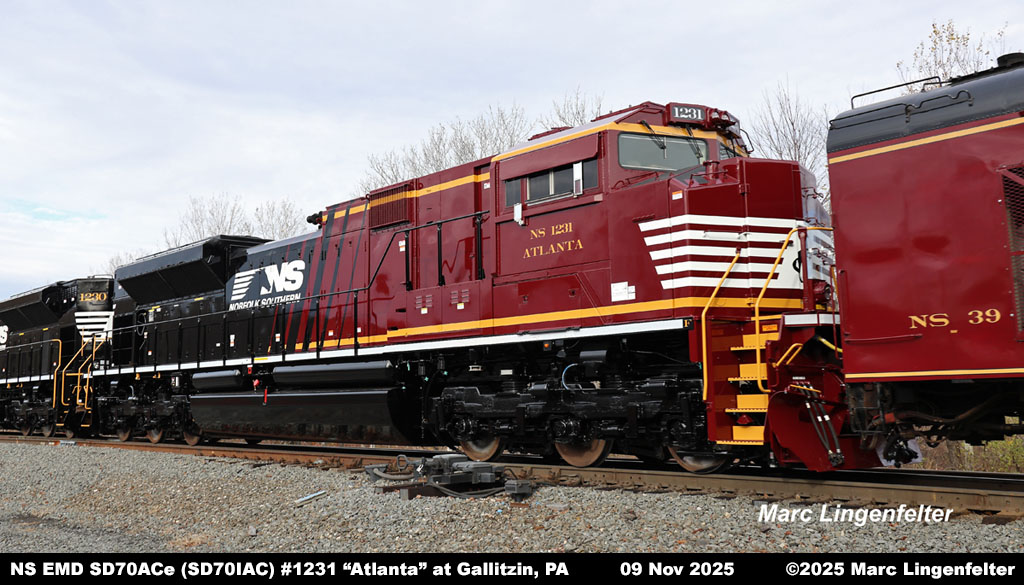

(1231) EMDX 2121 Confirming 20186647 20186647-007 Unit being renumbered and relettered for delivery to NS by Progress Rail at Muncie, IN.
(1232) EMDX 2122 Confirming 20186647 20186647-008 Unit being renumbered and relettered for delivery to NS by Progress Rail at Muncie, IN.
(1233) EMDX 2123 Confirming 20186647 20186647-009 Unit being renumbered and relettered for delivery to NS by Progress Rail at Muncie, IN.

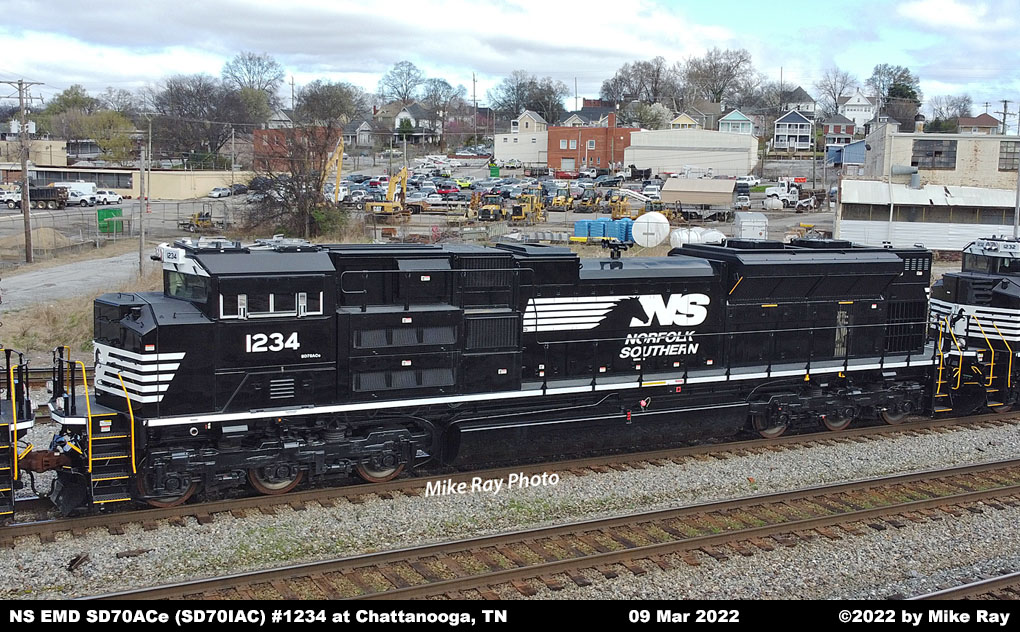

(1234) EMDX 2124 Confirming 20186647 20186647-010 Unit being renumbered and relettered for delivery to NS by Progress Rail at Muncie, IN.


General Info

NS Model Designation = SD70IAC
Horsepower = 4,500
Fuel Tank Capacity = 4,900 gallons
Dynamic Braking = Yes
Control = Single
Cab Signals = Yes
LSL (Locomotive Speed Limiter) = Yes

All units are EPA Tier 4 credit units.

All units are equipped with air conditioning.

All units are equipped with an electric parking brake.

All units are equipped for use in DPU (Distributed Power Unit) operation.

All units are equipped with NS LEADER/PTC (Positive Train Control) system.

All units are equipped with IAC (Individual Axle Control) with one inverter per axle for
better overall control of tractive effort. Because of this, NS has designated the units as SD70IAC.
